We understand that you may have many doubts and questions about the type and specifications of the product. Our experts have tried to answer as many FAQs as possible. If you don't find your questions you can email your questions to us. Please let us know if you find the FAQ helpful.

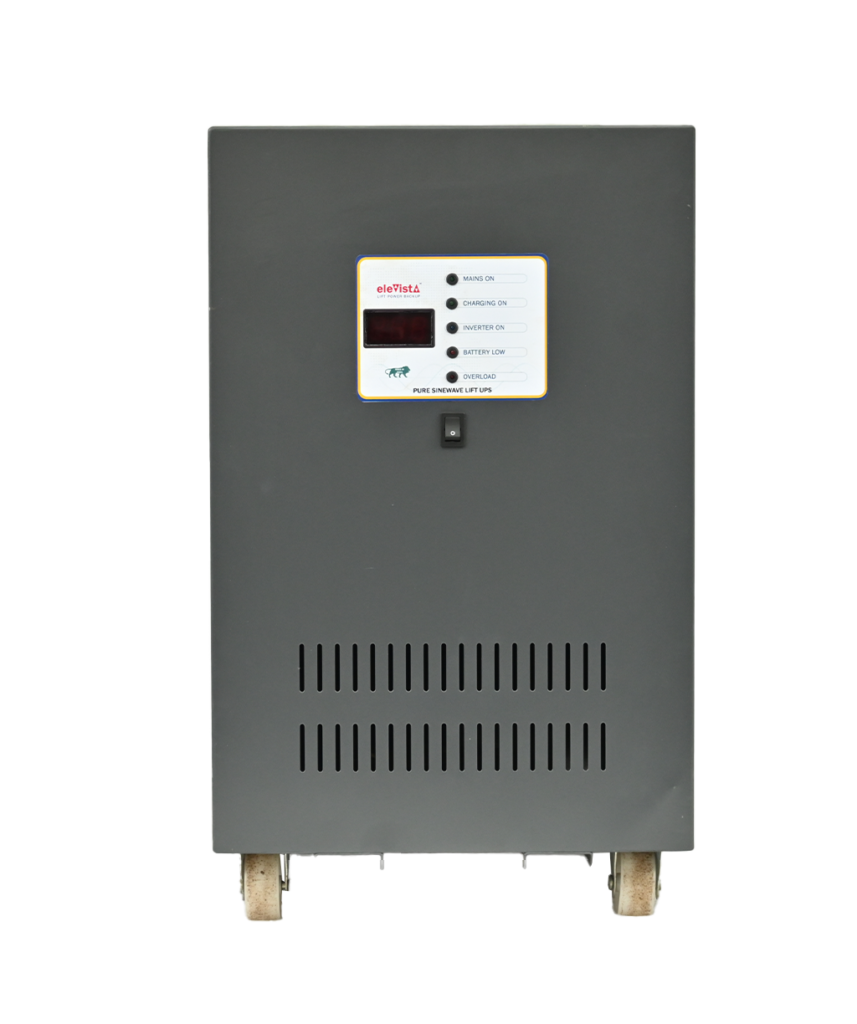

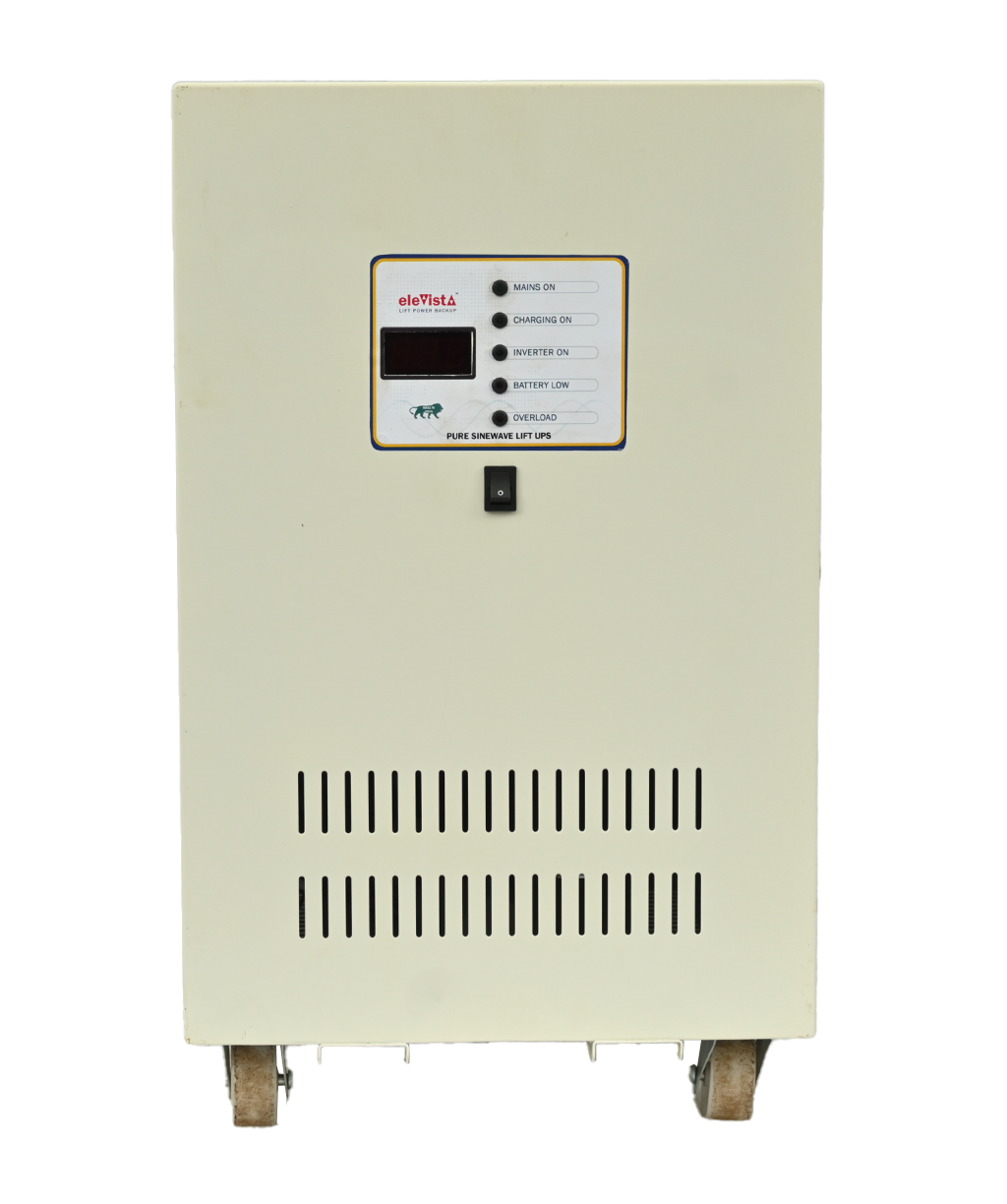

A lift battery backup is a system that charges a battery bank using an inbuilt charger when the main power supply is available. In the event of a power failure, the backup system automatically powers the lift using the battery bank.
When the mains is present the batteries connected to the lift backup are charged. When there is any fault in the input supply the lift is shifted on the backup mode automatically.
How Lift Backup Systems Prevent Downtime in Emergencies.
When the mains is present the batteries connected to the lift backup are charged. When there is any fault in the input supply the lift is shifted on the backup mode automatically
The cost depends on many factors like Motor power rating, Panel type, Number of passengers, Duration of the backup required etc.
It is suitable in areas where power outages are more frequent and are of longer durations.
No. There is no maintenance in lift backup. But we recommend using a blower to remove the dust particles every quarter.
Yes. The lead acid batteries require maintenance every quarter. However elevista lift backup is compatible with SMF as well as lithium ion batteries which do not require maintenance.
When the lift operates on battery mode and the battery level becomes low, the UPS detects if there are passengers inside the lift. It will wait until the passengers safely exit the lift cabin before shutting down, ensuring passenger safety.
A 20-second delay is provided to allow the capacitor of the Variable Frequency Drive (VFD) inside the lift control panel to discharge completely when there is a power interruption. This ensures safe operation. However we have developed a fast changeover model for absolute jerk-free operation of the lift.
Elevista lift backup has inbuilt single phase preventer (SPP). Whenever the input supply voltage of any of the three phases goes high or low or absent, the backup mode is turned on.
A lift backup is an offline UPS in which inverter mode is turned on only when the mains is absent. On mains mode the input supply is bypassed as it is.

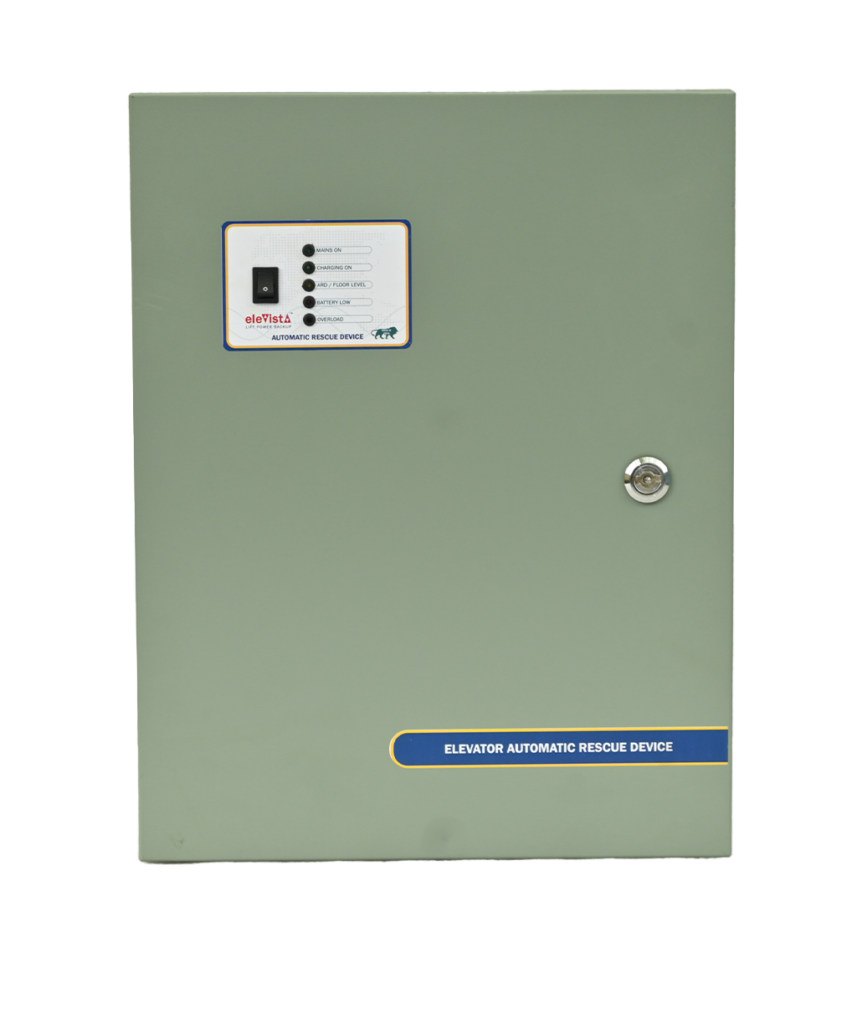

When the passengers get stuck inside an elevator during the grid power failure, the ARD system turns on the battery power and the lift is taken to the floor level and the doors are opened to evacuate the passengers.
When the mains power is present, the batteries are charged. When there is a power failure, ARD turns on automatically on battery mode and powers the lift to evacuate the passenger to the nearest floor level.
The cost depends on many factors like Motor power rating, Panel type etc.
It is suitable in areas where power outages are less frequent and are of shorter duration. Otherwise we suggest going with the Lift battery backup system.
No. There is no maintenance in ARD. Just once a quarter use a blower to remove dust particles.
No. The batteries are sealed maintenance-free and do not require maintenance.

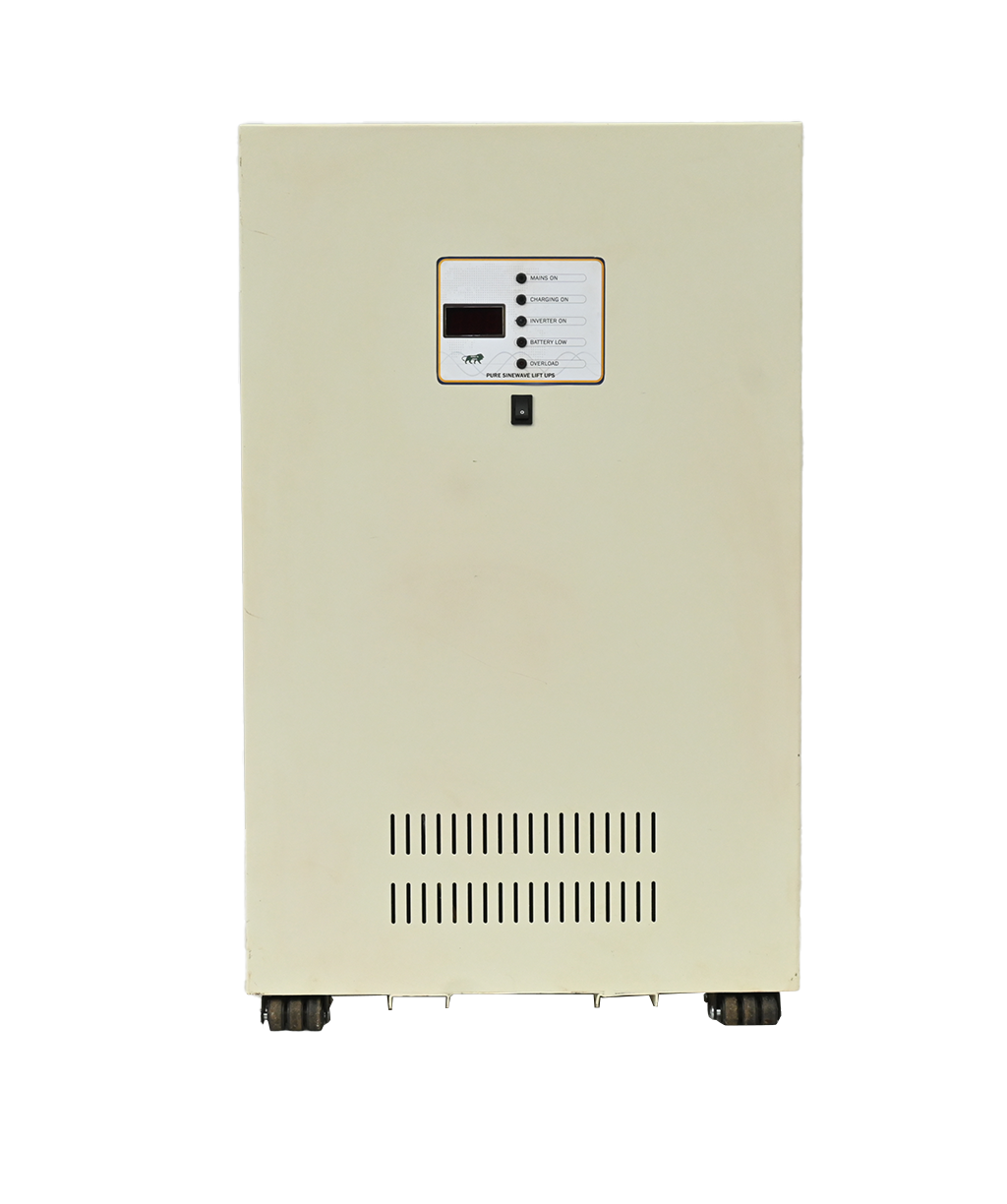

An Online UPS continuously provides clean and stable power by converting AC to DC and back to AC, ensuring uninterrupted power even during outages.
It offers the highest level of power protection, ideal for critical and sensitive equipment that needs consistent, uninterrupted power.
Continuous Power: No delays duYes, our UPS systems can be connected with the wifi module for remote monitoring and management from anywhere.ring power cuts.
Clean Output: Provides pure sine wave power.
Protection: Shields against surges and voltage issues.
Pure Sine Wave output means the UPS delivers smooth, consistent power, safe for sensitive electronics like computers and medical equipment.
Yes, it has an isolation transformer inbuilt, which ensures the noise present in the grid supply does not go to the connected equipment.
Use the remote monitoring tools to check the problem. Contact our support team for assistance or onsite service if needed.
Isolated online UPS comes with the double conversion technology and inbuilt isolation transformer whereas high frequency UPS does not have inbuilt isolation transformer which can be dangerous for sensitive equipment.
